  5. WhisperKOOL Twin Ceiling Mount Split 9000 – Ductless Wine Cellar Cooling System
By WhisperKOOL

WhisperKOOL Twin Ceiling Mount Split 9000 – Ductless Wine Cellar Cooling System

$11,849.00
$11,849.00
SKU: S-WKCM9000-220-HE
Room Capacity:
3,000 cu. ft.
Free Nationwide ShippingFree shipping over $50
Need AssistanceSpecific Questions? Call 800-659-9463
WhisperKOOLWhisperKOOL Ceiling Mount Split 8000 – Ductless Wine Cellar Cooling System

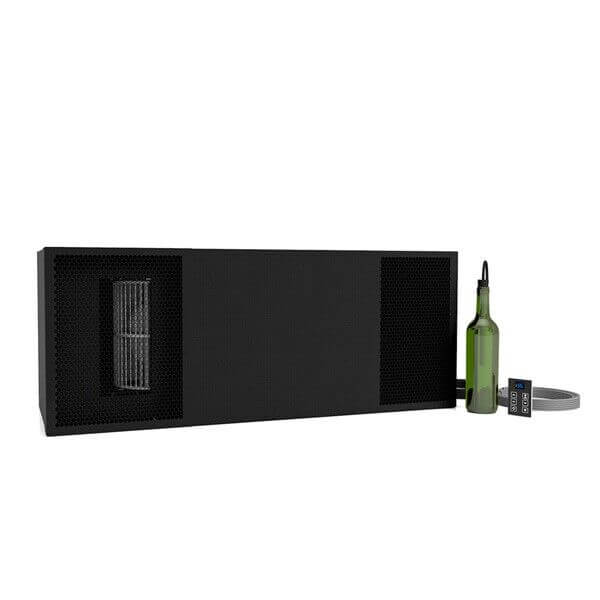

Rectangular black ductless wine cellar cooling unit with grille openings
Pair of black ceiling cooling vent units with mesh grilles and bottle
WhisperKOOLWhisperKOOL Twin Ceiling Mount Split 12000 – Ductless Wine Cellar Cooling System
Pair of black ceiling cooling vent units with mesh grilles and bottle
$11,849.00
$11,849.00

Product Specs

Room Capacity*
3,000 cu. ft.
Width
14.1"
Height
12.65"
Depth
35.75"
BTU/h
8561 - 10604 (depending on fan speed)
Refrigerant
R-134a
HP
1HP
Spec Sheet
Spec Sheet
Installation Guide
Owner's Manual
Amps
Primary 1.74 (Running Amps); Secondary 1.04 (Running Amps)
Installation
Condensing unit can be installed up to 100 line feet from the evaporator unit.
Thermostat
Advanced digital display (50ft cable), liquid-temperature measuring bottle probe (50ft cable).
Temperature Delta
Can maintain a 55°F cellar temperature with up to 120°F condenser air intake temperature
Warranty
2-year limited warranty & up to an additional (1) year grace period for installation. (parts and labor)

*Suggested cubic footage assumes a sealed, insulated cellar (min. R19). Materials like glass, stone, or concrete reduce insulation effectiveness. Always perform heat load calculations before selecting a cooling unit. WhisperKOOL may update this document without notice.

Ceiling Mount Split

WhisperKOOL’s ceiling-mounted split system evaporator delivers powerful cooling without being seen. It preserves racking space while remaining nearly invisible, pulling in warm ceiling air for efficient, even distribution. Built with professional-grade components, it’s durable, easy to install, and simple to maintain.

Questions about cooling?
Call our friendly support team at 800-659-9463

The Ductless Mini Platinum Split delivers powerful, quiet cooling with a discreet design. Its split system allows flexible placement, with the evaporator inside the cellar and the condensing unit up to 100 feet away. Built for durability and reliability, it’s trusted for both residential and commercial use.

Note: Installation by a qualified HVAC-R technician is required to maintain warranty coverage.

Important: WhisperKOOL does not supply a smart thermostat. Choosing the 24V Thermostat Conversion Kit removes the standard controls, requiring you to purchase your own 24V thermostat. Technical support for third-party thermostats is not provided.

*Please note that this feature will need an additional 4 inches of clearance on the side of the unit. See the owner manual for more information.

This BTU/h range is an estimate and may not account for all real-world conditions. Certain cellar designs may require a higher-capacity unit, especially when materials like glass, stone, or concrete reduce insulation efficiency. To ensure reliable performance and proper temperature control, we recommend selecting a unit with additional capacity. An undersized system can shorten equipment lifespan and may not achieve the desired temperature.

Product Warranty for Split System Units

A limited 2-year product warranty with up to an additional (1) year grace period for installation is offered with all split systems. While the warranty starts at the date of purchase, this warranty is not activated until a Product Warranty Checklist has been submitted and approved by WhisperKOOL.
